RevPayments - Add a Credit Card Reader

The following instructions are to add a credit card reader that will be used with the RevPayments integration.

Instructions

1. Access Admin > RevolutionEHR Solutions > RevPayments.
2. Open the appropriate location. Note: The locations that display in this grid are the locations the user has been assigned to that do not have another payment processor enabled. If a location is not displaying, a message displays at the top of the grid that indicates the reason.
   • The MOTO Service Account and Retail Service Account sections need to be setup with the help of a Global Payments Integrated representative. Do not edit without assistance.
3. In the Card Reader(s) section, click '+ Add.'
4. In the Add Card Reader modal, input Name and Host Name. Note: The information in the Name field displays in the Receive Payment screen, thus, should contain a description of the reader that the user will recognize, (e.g., Front Desk 1, Optical, Billing).

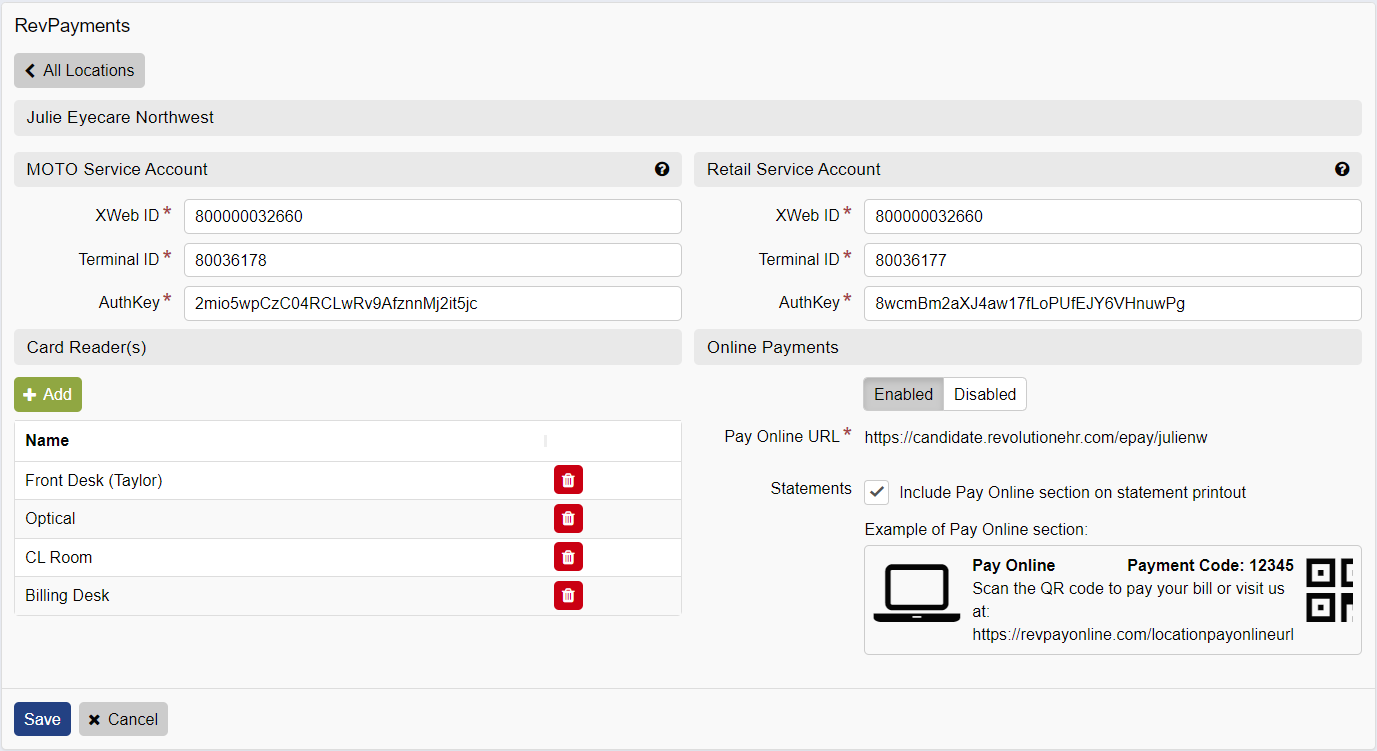

5. Click 'Ok.' Note: Repeat steps #3 - #5 for additional card readers. All card readers are displayed within the Card Reader(s) section. See Example
6. Click 'Save.'

Additional Information

• Global Payments Integrated Help Center
